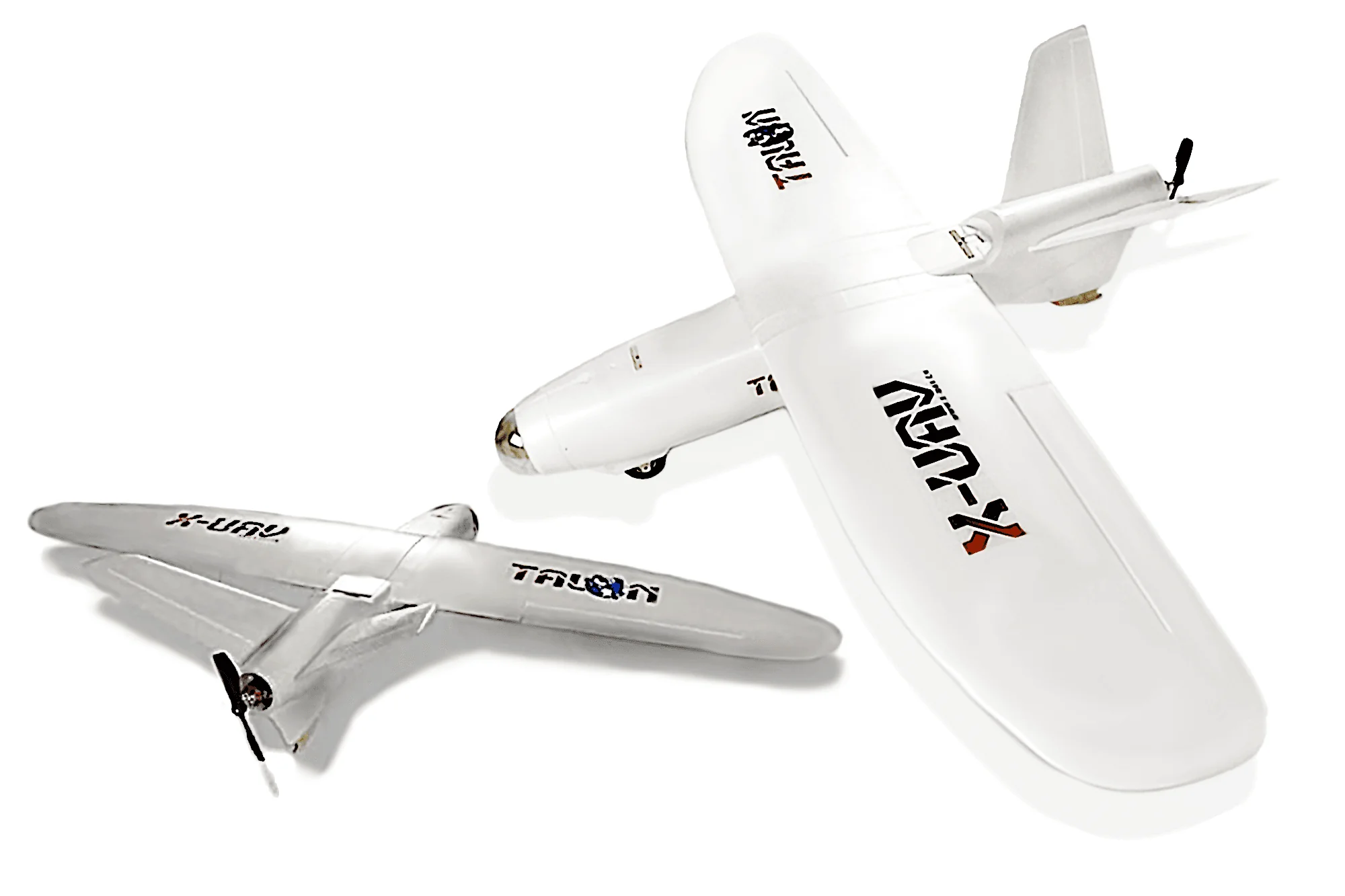

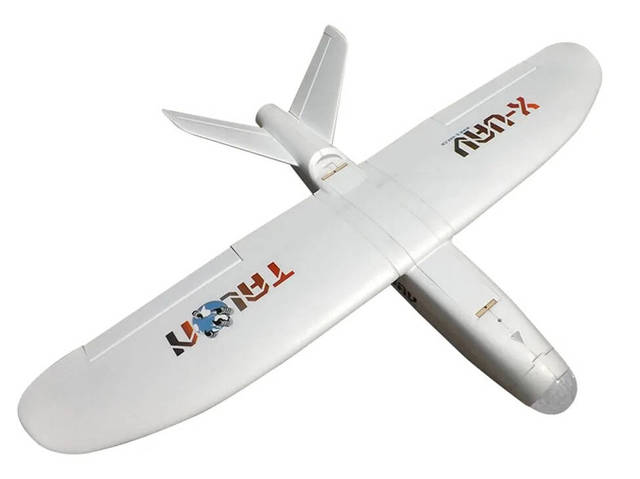

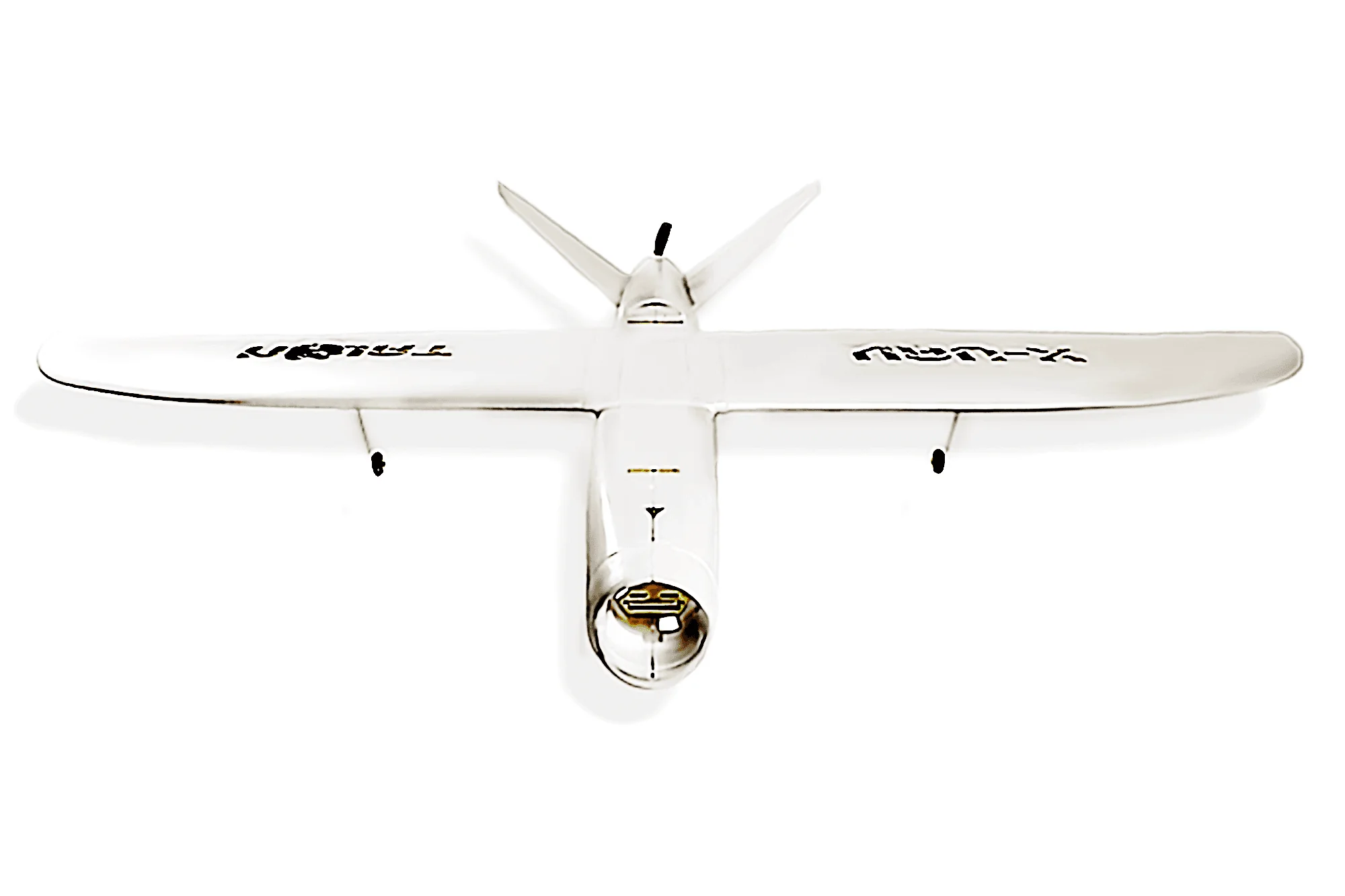

XUAV Talon 1718 mm Wingspan FPV V-tail Airplane Kit

The X-UAV Talon (1718mm) is an iconic fixed-wing FPV and aerial mapping platform known for its massive endurance, stability, and load-carrying capacity. Built specifically for serious long-range pilots and commercial mapping missions, this large-scale airframe offers a high-efficiency V-tail layout and an exceptionally wide fuselage bay.

Technical Specifications

Key Features & Highlights

• Huge Interior Volume: The cavernous main fuselage comfortably fits large battery arrays (such as 4S/6S 10,000mAh–20,000mAh LiPo or Li-Ion packs) alongside autopilot flight controllers (ArduPilot/Pixhawk), companion computers, and telemetry radios.

• High Efficiency & Endurance: With its generous 60 sq. dm wing area, low wing loading, and aerodynamic V-tail design, the 1.7m Talon easily achieves 1 to 2+ hours of continuous flight time depending on payload.

• Modular Assembly: Plug-in main wings with heavy-duty carbon fiber spars allow for easy teardown and transport despite its large wingspan.

• Designed for Mapping & Long Range: Features a clear, unobstructed camera view due to the rear pusher motor layout, plus removable nose options for downward or forward-facing camera gear.

• Reinforced Structure: Uses internal laser-cut plywood structural framing for the motor mount, wing saddle, and landing gear attachment points to handle heavy takeoff weights.

Recommended Power Setup

• Motor: 3542 / 3720 / 2820 size Brushless Motor (600KV – 1000KV based on cell count)

• ESC: 60A – 80A with switching BEC

• Servos: 2x 9g metal-gear servos (ailerons), 2x 17g metal-gear servos (V-tail)

• Propeller: 11 to 12-inch folding or standard pusher prop

• Battery: 4S 10,000mAh–16,000mAh LiPo or 6S 6P Li-Ion pack
