QS8 Connector
Roll over image to zoom in
₹690.00

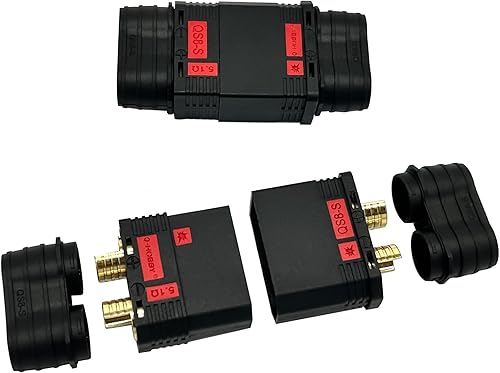

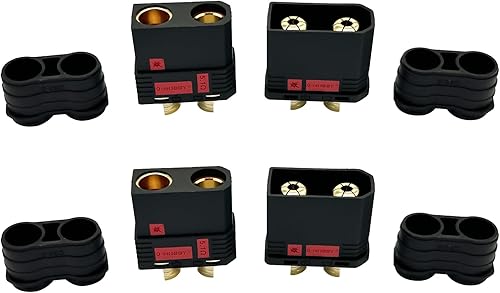

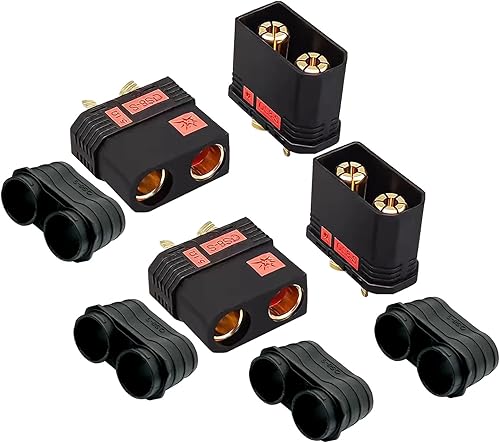

QS8-S anti spark connector Male & Female plug battery charger connector. Current resistance, high temperature resistance, high current and anti-spark prevention ensure machine safety
Model: QS8-S
Plastic material: nylon plus fiber
Instantaneous current: 180A
Rated current: 110A
Contact resistance: 0.51mQ
Rated voltage: DC 500V
Flame retardant grade: UL94 V0
Temperature resistance: 200 ℃
Application area: battery/controller/charger
Metal material: copper gold-plated
Recommended wire gauge: 6AWG-10AWG
Insulation material: PA
Operating temperature: – 20C to 120C
Package included:
1x QS8-S Connector Male + 1x QS8-S Connector Female
Additional information
| Weight | 50 g |
|---|---|
| Dimensions | 5 × 5 × 5 cm |
